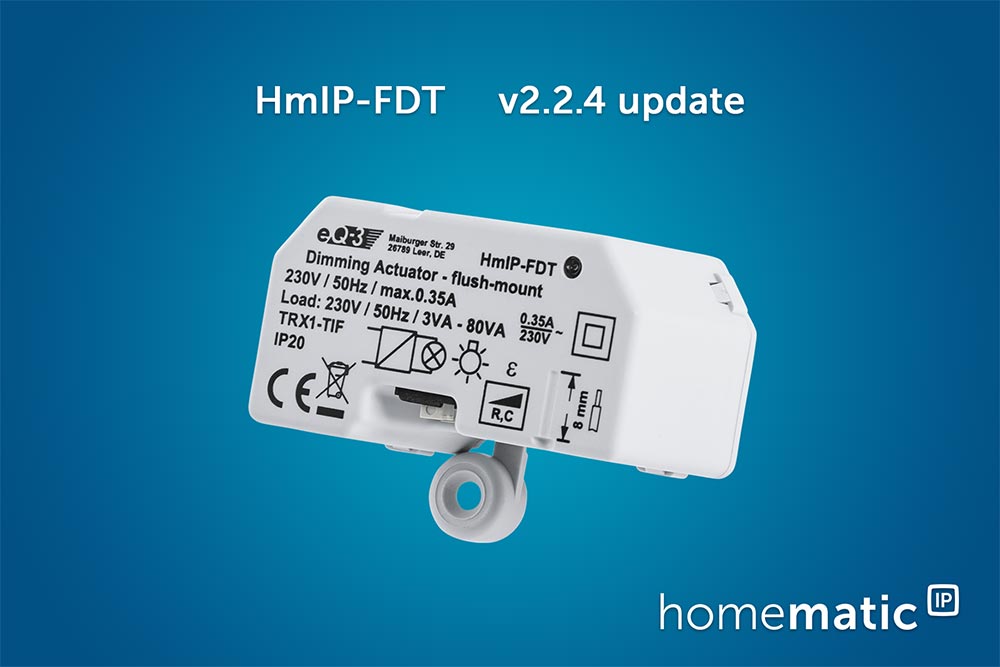

FW update: Inbouw dimmer module HmIP-FDT v2.2.4

27-03-2024

De firmware van de Homematic IP inbouw dimmer module is bijgewerkt naar versie 2.2.4. Deze update bevat een nieuwe functie voor beter aansturen en instellen van LED-lampen en bevat een bugfix voor een zeldzame fout in de opstartprocedure. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app. Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.

C H A N G E L O G
-----------------

Please note: Only use the firmware file in connection with the current software-version of the CCUx!

Device: HmIP-FDT - HomeMatic /IP
Dimmaktor Phasenabschnitt Unterputz

Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany

Version 2.2.4 - 2023-11-10
--------------------------------------------------------------

** Bugfix
* Fixed error which leads to an boot failure under some special conditions.

Version 2.2.0 - 2023-06-08
--------------------------------------------------------------

** Bugfix
* The ON_MIN_LEVEL parameter is evaluated inconsistently for a DEC and a direct link.

** Improvement
* Add 2 configuration parameters for better dimming of LED lamps

Version 2.0.0 - 2022-12-06
--------------------------------------------------------------

** Bugfix
* Wrong evaluation of the event counter with multiple links between sensor and actuator
* Device sends answers-frame on a TimeInfo from AC to "any-router"-address
* In a switching group, only the first channels are switched on
* With the settings "Anzahl der auszulassenden Statusmeldungen = 0" and "Anzahl der auszulassenden, unveränderten Statusmeldungen = 0" the status is not transmitted in 2 to 3 minute intervals
* If the switch-on and switch-off times in the Easy Profile are set to "Not active" at the same time, the device hangs up.
* Wrong behaviour if a link partner is answering late
* A TimeInfo frame with ARR-Bit will not be answered
* Homematic IP actuators trigger, due to the astro function, one hour delayed or prematurely on the day of the time changeover.
* device uses OFF_LEVEL of a direct link for direct execution command if level of direct execution is 0
* Wrong order of datatypes in the statusinfo frame
* The Weekprogram astro times doesn't work correctly with negative latitude or longitude
* After an OTAU reboot the inclusion requests are send to address 0x000000 sometimes
* Device does a reboot if factory reset is aborted

** New Feature
* Implement channel parameter for setting the Dimm-Min-Level.
* Switch-off ramp via central programs or automation.
* Support of HmIPW operation mode
* Rework AppSequenceCounter validation to a counter range check
* Support of systems and solutions without a central unit (installer solution)

** Improvement
* Switch from external to internal oscillator
* The time information telegram does not contain a note about the sommer / winter time change.
* Modify event counter check to meet current specification
* All PowerUp parameters, that are listed in list 3 of the device, must be supported.
* Changed default values for Powerup action parameters

Version 1.6.0 - 2017-11-21
--------------------------------------------------------------

** Bugfix
* A TimeInfo frame with ARR-Bit will not be answered
* Homematic IP actuators trigger, due to the astro function, one hour delayed or prematurely on the day of the time changeover.
* device uses OFF_LEVEL of a direct link for direct execution command if level of direct execution is 0
* Wrong order of datatypes in the statusinfo frame
* The Weekprogram astro times doesn't work correctly with negative latitude or longitude
* After an OTAU reboot the inclusion requests are send to address 0x000000 sometimes
* Device does a reboot if factory reset is aborted

** New Feature
* Support of HmIPW operation mode
* Rework AppSequenceCounter validation to a counter range check
* Support of systems and solutions without a central unit (installer solution)

** Improvement
* All PowerUp parameters, that are listed in list 3 of the device, must be supported.
* Changed default values for Powerup action parameters

--- END OF FILE ---
