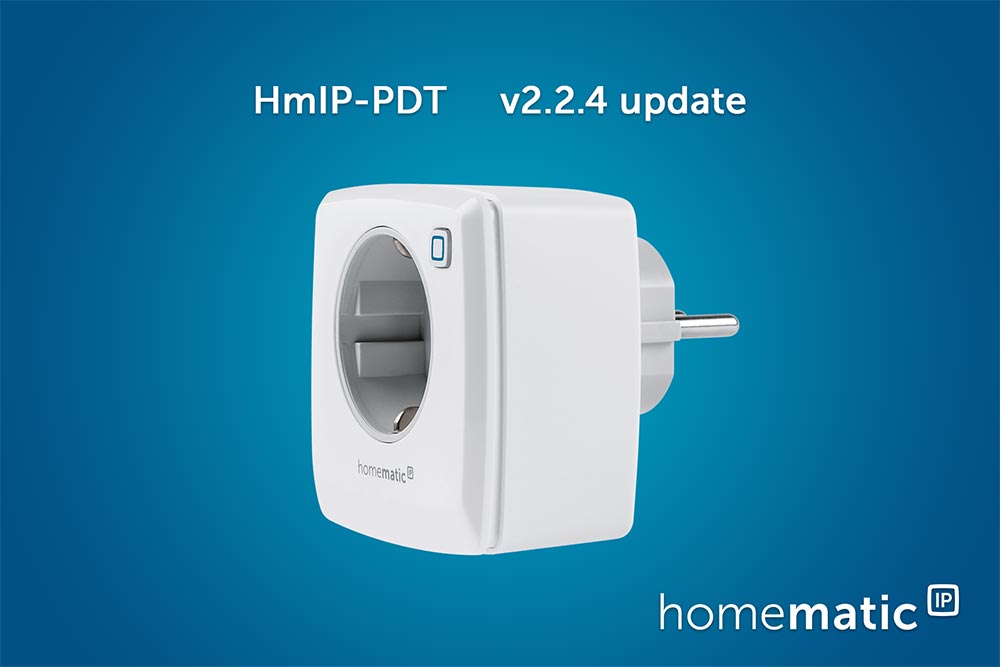

FW update: Stekkerdimmer HmIP-PDT v2.2.4

27-03-2024

De firmware van de Homematic IP stekkerdimmer is bijgewerkt naar versie 2.2.4. Deze update bevat een nieuwe functie voor beter aansturen en instellen van LED-lampen en bevat een bugfix voor een zeldzame fout in de opstartprocedure. De changelog bevat alle informatie van de huidige en eerdere firmware updates. De update wordt spoedig beschikbaar via de Homematic IP app. Voor gebruikers van de CCU3 wordt de update zichtbaar via de Homepage van de WebUI.

C H A N G E L O G
-----------------

Please note: Only use the firmware file in connection with the current software-version of the CCUx!

Device: HmIP-PDT - Homematic IP Dimmer-Steckdose - Phasenabschnitt

Company: eQ-3, Maiburger Str. 29, 26789 Leer, Germany

Version 2.2.4 - 2023-11-10
--------------------------------------------------------------

** Bugfix
* Fixed error which leads to an boot failure under some special conditions.

Version 2.2.2 - 2023-09-11
--------------------------------------------------------------

** Bugfix
* No signaling of the switching status on the system LED

Version 2.2.0 - 2023-06-08
--------------------------------------------------------------

** Bugfix
* The ON_MIN_LEVEL parameter is evaluated inconsistently for a DEC and a direct link.

** Improvement
* Add 2 configuration parameters for better dimming of LED lamps

Version 2.0.0 - 2022-12-07
--------------------------------------------------------------

** Bugfix
* Wrong evaluation of the event counter with multiple links between sensor and actuator
* Device sends answers-frame on a TimeInfo from AC to "any-router"-address
* Device does a reboot if factory reset is aborted
* In a switching group, only the first channels are switched on
* With the settings "Anzahl der auszulassenden Statusmeldungen = 0" and "Anzahl der auszulassenden, unveränderten Statusmeldungen = 0" the status is not transmitted in 2 to 3 minute intervals
* If the switch-on and switch-off times in the Easy Profile are set to "Not active" at the same time, the device hangs up.
* Wrong behaviour if a link partner is answering late
* A TimeInfo frame with ARR-Bit will not be answered
* Homematic IP actuators trigger, due to the astro function, one hour delayed or prematurely on the day of the time changeover.
* Factory-Reset timing not correct
* device uses OFF_LEVEL of a direct link for direct execution command if level of direct execution is 0
* After an OTAU reboot the inclusion requests are send to address 0x000000 sometimes

** New Feature
* Implement channel parameter for setting the Dimm-Min-Level.
* Switch-off ramp via central programs or automation.
* Rework AppSequenceCounter validation to a counter range check

** Improvement
* Switch from external to internal oscillator
* The time information telegram does not contain a note about the sommer / winter time change.
* Modify event counter check to meet current specification
* Improve switch command functionality by new implementation of local loopback, adding command cancelation and using node sending functionality
* All PowerUp parameters, that are listed in list 3 of the device, must be supported.

Version 1.6.0 - 2017-11-21
--------------------------------------------------------------

** Bugfix
* Device does a reboot if factory reset is aborted
* A TimeInfo frame with ARR-Bit will not be answered
* Homematic IP actuators trigger, due to the astro function, one hour delayed or prematurely on the day of the time changeover.
* device uses OFF_LEVEL of a direct link for direct execution command if level of direct execution is 0
* After an OTAU reboot the inclusion requests are send to address 0x000000 sometimes

** New Feature
* Rework AppSequenceCounter validation to a counter range check

** Improvement
* All PowerUp parameters, that are listed in list 3 of the device, must be supported.

--- END OF FILE ---
